BOWHEAD "RX" Off-Road Battery Assist Hand-Cycle

BOWHEAD "RX" Adventure Battery Assist Hand-Cycle

KEY FEATURES:

How much does the RX weigh?

• 43 kg / 95 lbs

What are the dimensions?

• Length (tire to tire): 1852 mm / 72 in

• Wheelbase (axle to axle): 1257 mm / 49 in

• Width (external from axle to axle): 737 mm / 29 in

• Height: 914 mm / 35 in

What is the RX’s top speed?

• 32 km / 20 mph

How far can the RX travel on a full charge?

• 1 x 500 PowerTube = about 45 km / 28 mi

• 2 x 500 PowerTubes = about 100 km / 62 mi

What is the best riding environment for the RX?

• Road, Gravel and mountain

Who is the RX best suited for?

• Intermediate to advanced riders

What is the RX’s start up behavior?

• Very Sporty

What is the Bowhead FLOW™ front-end?

• The RX features the Bowhead FLOW™ which is our unique articulating front-end which allows for 7” of effective front end articulation.

• Articulation assistance is available - our Lean Assist Bands are heavy-duty, dynamic bungee that allows the riders to customize their ride. It allows you to get the benefits of the articulation, but with added safety and control. We recommend starting on the tighter end, and then decrease the tension as you gain more confidence!

What is the RX’s suspension travel?

• Font: 3” independent front suspension

• Rear: 4.5” single pivot linkage rear suspension

What does Bowhead use for the RX’s Drive Unit?

• We use the Bosch Performance Line CX eMTB motor

What does Bowhead use for the RX’s computer system?

• We use the Kiox – Bosch eBike system 2

What Derailleur Hanger does the RX use?

• SRAM Universal Derailleur Hanger

What harness sizes are available?

• We use RideEngine harnesses and have multiple sizes available for a wide range of riders

  • XS (24-26”) S (26-33”) M (32-36”) L (35-39”) XL (39-44”)

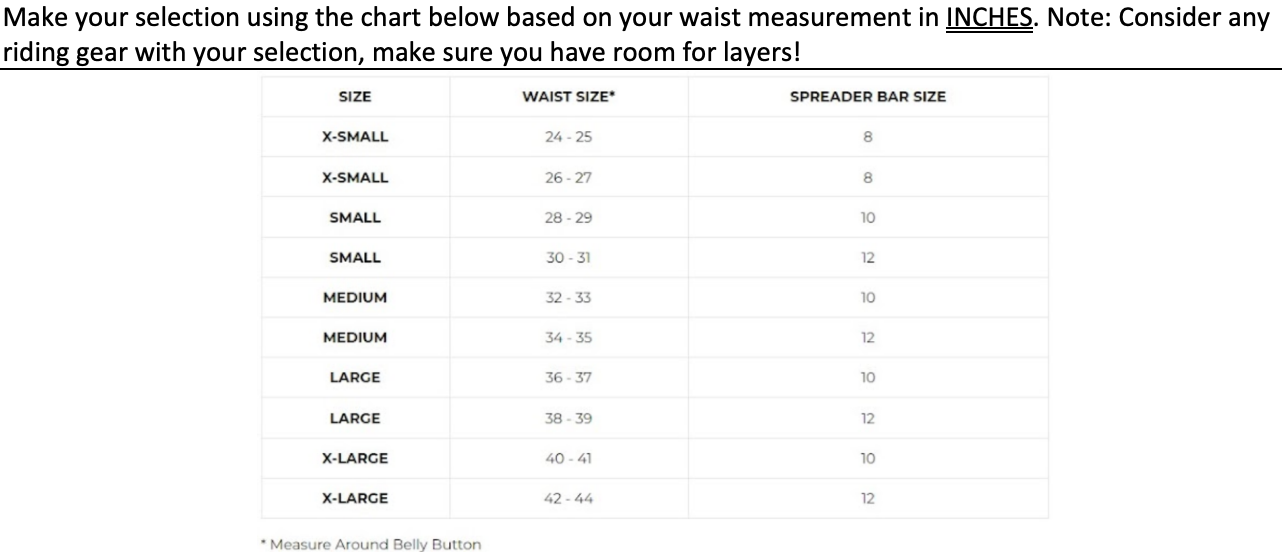

What is the spreader bar and how do I find my measurement?

• The spreader bar helps keep your sides from getting sore in the harness. To figure out which size spreader bar is best for you please measure your waist in inches and refer to the chart on the order form.

What Quad control options are available for the RX?

• Please email us at Support@howirollsports.com to discuss quad control options

What are the brake lever mounting options?

• Option 1: Rear brake on the right-hand side / front brake on the left-hand side

• Option 2: Rear brake on the left-hand side / front brake on the right-hand side

What is the standard battery that comes with the RX?

• The RX comes standard with 1 x 500 PowerTube horizontal battery (This is available only for customers that reside within North America - International customers will need to source batteries and chargers locally)

  • 500 PowerTube horizontal battery = 30 volts, 13.4 Ah, and 500 Wh

What is the RX’s Assist level (percentage %)?

• TURBO: 340%

• eMTB: 140-340%

• TOUR: 140%

• ECO: 60%

What is the RX’s max drive torque (Nm)?

• TURBO: 85 Nm

• eMTB: 85 Nm

• TOUR: 50 Nm

• ECO: 40 Nm
